Double Hung

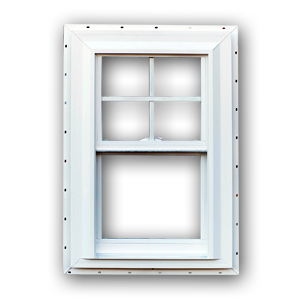

730, New Construction DH with built-in J-channel

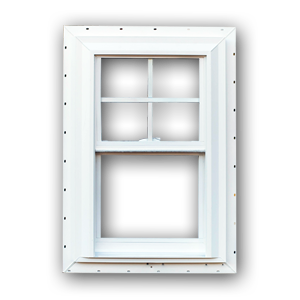

730J, New Construction DH without J-Channel

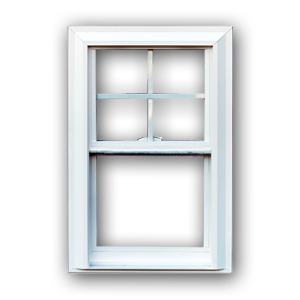

700, Replacement DH No J-channel, No Nailing Fin
Our Double-Hung provides with ultimate quality, durability, great look and strength.

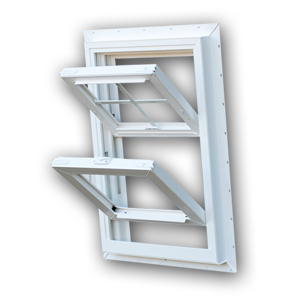

Both sashes slides vertically for ideal ventilation, and each sash tilt into making it easy to clean interior and exterior glass surfaces.
Our Double-Hung windows are custom made to fit your home, save on energy bills, improve the look of your home both inside and out.
Series / Types: Double Hung tilt
Test Size: As Tested per AAMA 101 / I.S. 2-97 / Gateway (44"x60")
Min Size: Width 16" x Height 24"
Max Size: Width 112" x Height 82"
Structural Rating: DP35, DP50, Impact Rated Available, in accordance with AAMA 101-97
Forced Entry: Grade 10, in accordance with AAMA 101-97
NFRC / Energy Star: Rating simulations available for various glass packages
Frame Depth: 3 1/4"
Frame Color: Cream White or Tan/Beige
Frame style: TG730 OR TG730J, Integral J-Channel with Brickmold exterior shape / TG700, Exterior bevel
Sill Type: Slope sill, no weep (TG730/TG730J)
Receptor Groove: Face mount
Sash Removal: Tilt-in
Balance system: TG730 / TG730J, Inverted block & tackle / TG700, Constance force coil balance
Truth Locks: Cam
Keepers: Top mounted (1/4" base)
Lift Rail / Pull Stile: Integral Handles on top and bottom rail
Glazing System: Exterior glazed bead
Reinforcement: Keeper rail / Lock rail
Overall Thickness (OAT): 7/8"
Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure
Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour
Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available
Screen: 1/2 screen or Full screen (Restriction may apply)
Gas: Standard with LE270 glass
Lock: Wide, deep interlocks
Latch: recessed "tilt" latches
Weatherstripping:
Dual weatherstripping at the meeting rail
Dual weatherstripping around perimeter of sash
Limited Lifetime Warranty
