Fixed / Shape
9251, New Construction SH Fixed Window
781, New / Replacement DH Fixed Window
9251B, New Construction SH Fixed Shape Window

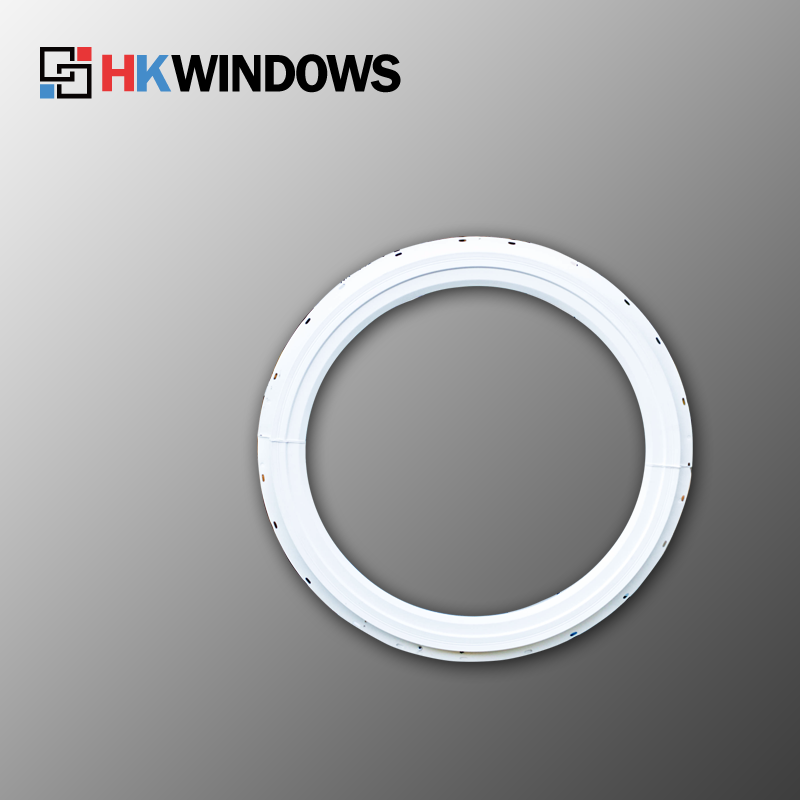

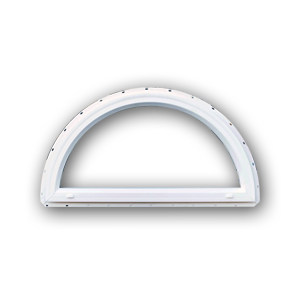

730B, New / Replacement DH Fixed Shape Window
HK Windows offers a virtually limitless variety of standard and custom shapes and fixed windows. Matching profiles to your operable units are available for consistent look.
Fixed windows and shapes can be used to provide beautiful views, design accents, or add extra style to a window grouping. Fixed windows do not open.
Let us help customize your home!
Series / Types: Picture Window (Direct Glazed)
Test Size: As Tested per AAMA Gateway (60"x60")
Min Size Fixed: Width 11 1/2" x Height 11 1/2"*
Max Size Fixed: Width 112" x Height 82"*
*Min Á Max size may vary depending on the glass availability and shape of the unit. Contact office for more information.
Structural Rating: DP35, DP50, Impact Rated Available, in accordance with AAMA 101-97
Forced Entry: N/A
NFRC / Energy Star: Rating simulations available for various glass packages
Frame Depth: 3 5/32" or 3 1/4", depending on the profile
Frame Color: Cream White or Tan/Beige
Frame style: Exterior bevel
Receptor Groove: Universal, Face mount
Overall Thickness (OAT): 3/4" or 7/8"
Glass Type: Clear, LOW-E270, LOW-E366, Tinted, Tempered, Obscure
Grid types: 5/8" Flat, 13/16" Flat, 11/16" Contour, 1" Contour
Pattern: Regular HK Windows Standard, Prairie 6Lites, Prairie 9Lites, and other custom patterns available
Screen: None
Gas: Available, Standard with LE270 glass
Limited Lifetime Warranty
